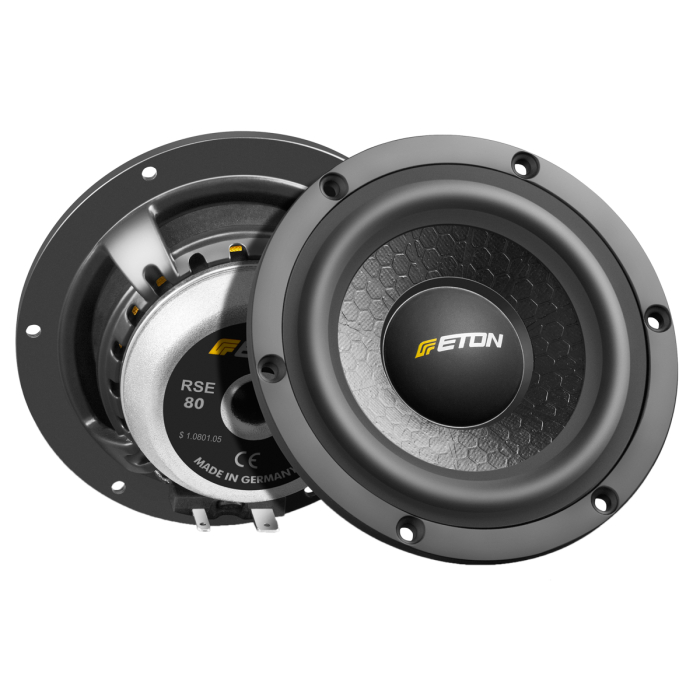

RSE80
80 mm (3") midrange driver
TheRSE 80 is the logical extension of the RSE160 to the 3-way RSE system. Here you will also find the paper-foam-paper membrane again. This high-end sandwich membrane guarantees consistent sound characteristics, even in 3-way operation. The stiffened, powder-coated and flow-optimized aluminum die-cast basket visually matches the RSE 160. The powerful neodymium magnet with the optimized magnetic field symmetry and the large core bore, which provides optimized ventilation and cooling, provides the necessary, level-fast pre-drive. Equipped with installation-friendly connection terminals, flat dimensions and high efficiency, the RSE 80 is the ideal extension of the RSE 160 to a 3-way system. For passive operation, the MRX-3W accessory crossover set is required.
Product features
80 mm (3 inch) midrange driver with PSP diaphragm (paper/foam/paper), to expand the RSE160 to a 3-way system. 4 Ohm impedance, 20 W nominal power handling, 30 W music power handling, 88 dB characteristic sound pressure, powder coated die-cast aluminum basket with strong neodymium magnet. Incl. cover grille, Made in Germany.
Technology
NEODYM-MAGNET - a powerful magnet, full control and compact in size. Neodymium magnets are characterised by their high pulse fidelity and the optimal magnetic field symmetry.
ALUMINIUM DIE-CAST BASKET - Increased stability with a minimum of weight, powder-coated, corrosion-resistant basket with optimized heat dissipation and flow-optimised. Reduced resonance of the material for a maximum of precision.
OPTIMISED-HEAT-DISSIPATION - The T-joke design has been specially designed to absorb and effectively dissipate heat generated by the magnet system, through the large core bore and specially designed ventilation ducts. without creating any flow noise.
OPTIMISED-VENTILATION - The basket design has been specially developed to ensure better heat dissipation to the environment, in addition the basket design minimises / prevents the generation of noise.
OPTIMISED-MAGNETIC-FIELD-SYMMETRY - Many factors during the production of a speaker chassis subsequently result in the symmetry of the magnetic field. It is a combination of the pole plate, the actual magnet and the T-joke as well as their properties in size, magnetic strength and the precision – how they are put together. We have optimised this process and with the highest precision to achieve the best performance.
MADE IN GERMANY - We have been developing and testing loudspeakers for over 35 years. Our entire manufacturing and development know-how plays a central role in this. This loudspeaker was developed and manufactured in Germany and has been subjected to our strict quality control. A promise of quality in terms of performance and workmanship.

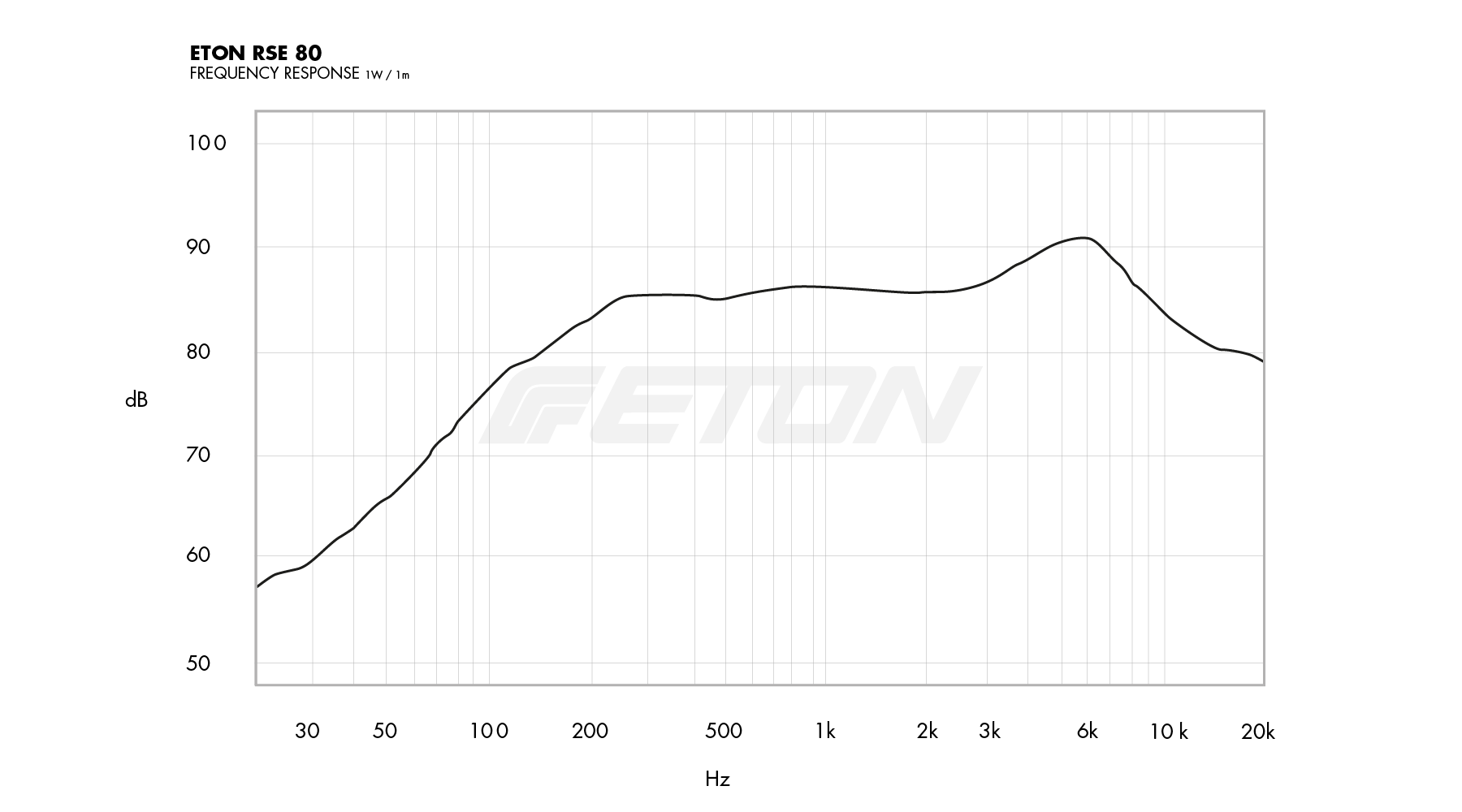

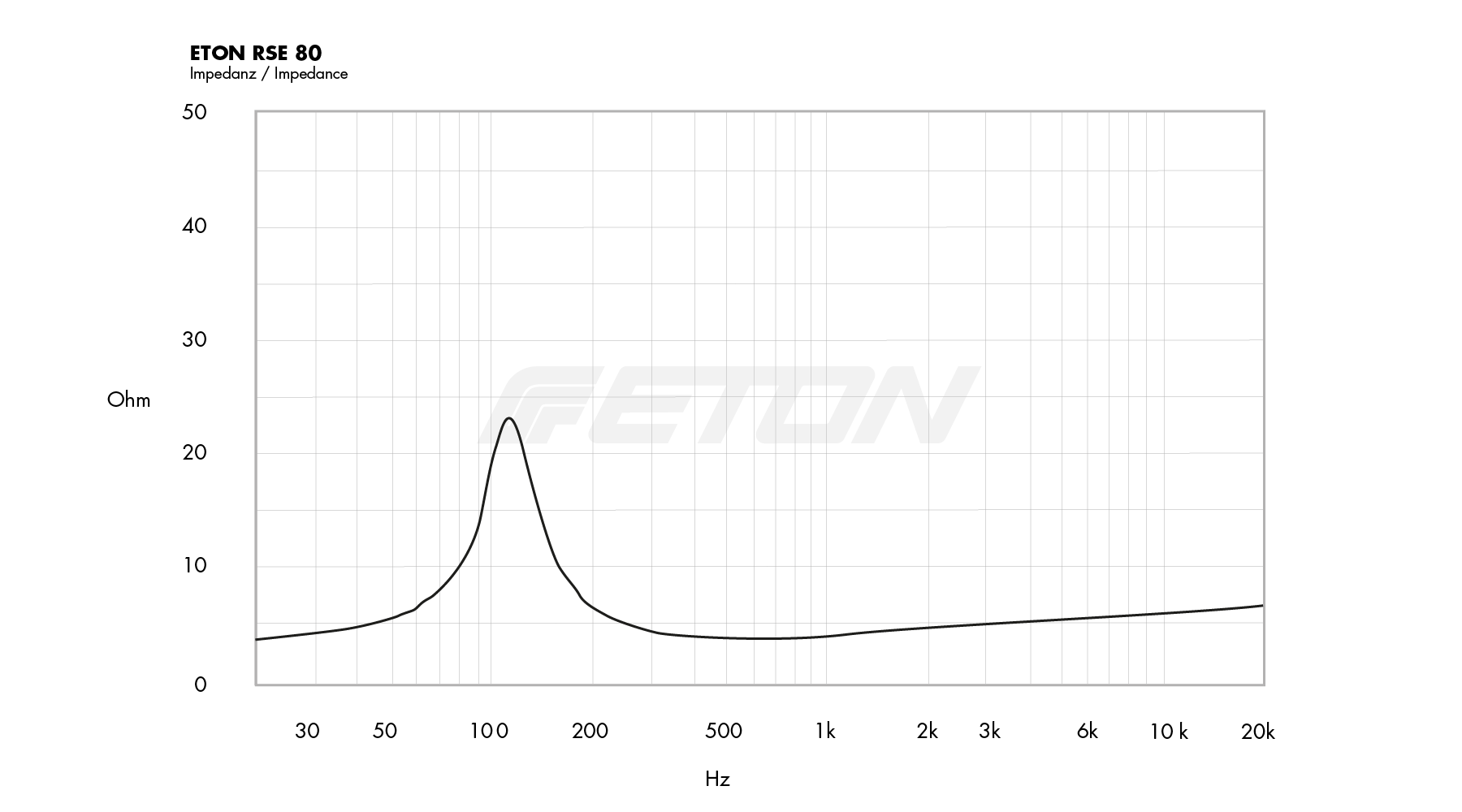

Technical data
