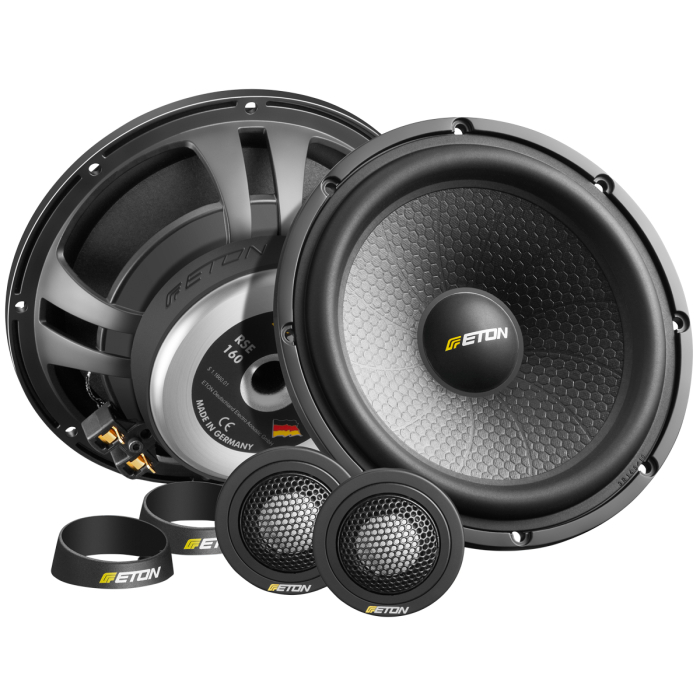

RSE160
2-way 165 mm (6.5") component system
The low-profile paper-foam-paper cone, pressed into a sandwich composite material with special embossing, provides low-resonance, clean and open-sounding midrange reproduction. The flat and extremely powerful ferrite drive with the optimized airflow and an optimized magnetic field symmetry, in combination with the dual fiber centering, which allows a stable and long-term elastic suspension, guarantee a powerful bass. In addition, the RSE 160 is characterized by its stable, well-ventilated die-cast aluminum basket, the gloss-turned pole plate and the extremely resilient 32 mm voice coil. The fine-drawing 25 mm aluminum-ceramic domes with swivel and rotate function for adjusting the radiation pattern and the finely wrapped, copper-finished aluminum wire in conjunction with a vented coil allow the clearest highs and harmonize perfectly thanks to the specially tuned housing crossovers. A high-resolution, fresh and detailed treble paired with powerful, dynamic bass and a powerful, voluminous, warm midrange.
Product features
165 mm (6.5 inch) 2-way components with PSP diaphragm and 25 mm ceramic-aluminum tweeter for ultra-fine highs. Powder-coated, die-cast aluminum basket, Strong ferrite magnet with gloss-turned bottom plate & large core bore, 70/120 W nominal/music power, 4 Ohm impedance, 89 dB characteristic sound pressure, incl. high-quality cabinet crossovers, Made in Germany manufacturing and development.
Technology
ALUMINIUM DIE-CAST BASKET - Increased stability with a minimum of weight, powder-coated, corrosion-resistant basket with optimized heat dissipation and flow-optimised. Reduced resonance of the material for a maximum of precision.
LOW/MID-RANGE DRIVER - 165 mm outer diameter, 8 screw points, arranged in a circle. Recommended frequency range: 50 Hz - 3000 Hz.
HIGH-STRENGTH-VOICE-COIL - strong power surges and high temperatures andtemperature fluctuations in the vehicle must be withstood by a voice coil, the current flows through it. It guarantees impulse fidelity, centring and much more.Particularly light construction and at the same time extremely stable with optimal heat dissipation and high symmetry for an optimal working range.
NOMEX-SPIDER - a spider for highest demands and durability. Particularly robust against wear and tear and yet with the necessary flexibility a loudspeaker needs. The mix-fibre fabric was specially developed for loudspeaker construction and offers all the advantages of a modern spider system.
OPTIMISED-HEAT-DISSIPATION - The T-joke design has been specially designed to absorb and effectively dissipate heat generated by the magnet system, through the large core bore and specially designed ventilation ducts. without creating any flow noise.
OPTIMISED-VENTILATION - The basket design has been specially developed to ensure better heat dissipation to the environment, in addition the basket design minimises / prevents the generation of noise.
89-DB-SOUND-PRESSURE-LEVEL - measured at 2.83 V / 1 m. According to this industry standard all loudspeakers are measured and their sound pressures determined.
OPTIMISED-MAGNETIC-FIELD-SYMMETRY - Many factors during the production of a speaker chassis subsequently result in the symmetry of the magnetic field. It is a combination of the pole plate, the actual magnet and the T-joke as well as their properties in size, magnetic strength and the precision – how they are put together. We have optimised this process and with the highest precision to achieve the best performance.
MADE IN GERMANY - We have been developing and testing loudspeakers for over 35 years. Our entire manufacturing and development know-how plays a central role in this. This loudspeaker was developed and manufactured in Germany and has been subjected to our strict quality control. A promise of quality in terms of performance and workmanship.
Technical data
