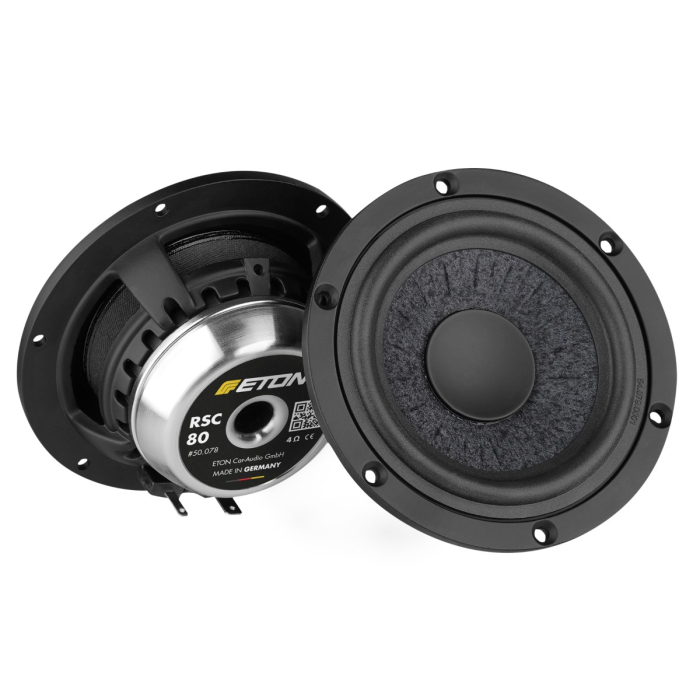

RSC80
80 mm (3") midrange driver
New high-end 80 mm (3") midrange driver in the performance class! Thanks to the newly developed membrane technology, consisting of a rib-reinforced aramid fiber fleece sandwich construction, it is extremely strong and also extremely light. Ideal for powerful, contoured, and finely detailed sound reproduction. Extremely impulse-accurate even with the smallest signals. The open-pored surface of the diaphragm reduces possible interference and ensures a rich and mature sound character, with voices reproduced in a full and contoured manner. The new RSC 80 features a powerful neodymium magnet with a polished base plate with a large pole core bore, a torsion-resistant die-cast aluminum basket, and is easy to integrate into the vehicle thanks to its flat installation dimensions. 20 W RMS power handling and 30 W music power handling with a sound pressure level of 86 dB speak for themselves. Made in Germany.
Product features
Newly developed 80 mm (3") high-end midrange driver in the performance class with a newly constructed, rib-reinforced aramid fiber fleece sandwich membrane. High-gloss pole and base plate with large pole core bore for maximum ventilation, powerful yet space-saving neodymium magnet with high efficiency and optimized magnetic field properties. Anodized aluminum dust cap with coil neck docking for additional heat dissipation. Reinforced aluminum die-cast basket in ETON design with additional ventilation. Ideal as a 3-way addition to the RSC 165 or other systems. Flat installation depth of 33.9 mm! 20 W RMS power handling and 30 W music power handling with a sound pressure level of 86 dB and 4 ohms impedance.
Technology
NEODYM-MAGNET - a powerful magnet, full control and compact in size. Neodymium magnets are characterised by their high pulse fidelity and the optimal magnetic field symmetry.
ALUMINIUM DIE-CAST BASKET - Increased stability with a minimum of weight, powder-coated, corrosion-resistant basket with optimized heat dissipation and flow-optimised. Reduced resonance of the material for a maximum of precision.
OPTIMISED-MAGNETIC-FIELD-SYMMETRY - Many factors during the production of a speaker chassis subsequently result in the symmetry of the magnetic field. It is a combination of the pole plate, the actual magnet and the T-joke as well as their properties in size, magnetic strength and the precision – how they are put together. We have optimised this process and with the highest precision to achieve the best performance.
MADE IN GERMANY - We have been developing and testing loudspeakers for over 35 years. Our entire manufacturing and development know-how plays a central role in this. This loudspeaker was developed and manufactured in Germany and has been subjected to our strict quality control. A promise of quality in terms of performance and workmanship.
Technical data
