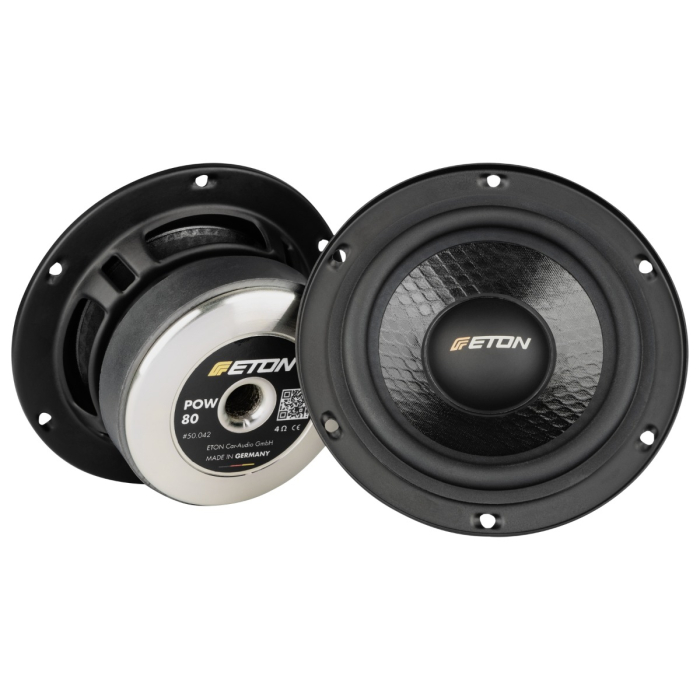

POW80

80 mm (3") midrange driver

From now on there is a matching midrange speaker for our best-selling speaker series "POW"! An 80 mm (3") midrange driver with the unique sound characteristics of the POW speaker series. Razor-sharp precision, dynamic fireworks and pure tonality! Thanks to the often copied and never achieved original POW cone made of multilayer paper-fiberglass fabric with special coating - a midrange driver in a class of its own. The warm and full-sounding membrane produces in the interaction of powerful ferrite magnet with large core bore for optimum cooling properties and stiffened metal basket, a dynamic fireworks that can be heard. Sensationally dynamic drums out of nowhere, the finest sounding guitar strings or powerful vocal passages - the POW 80 delivers and captivates its listeners in the spell. A system extension for sound enthusiasts, fits perfectly with the POW+ series as well as POW series. For passive connection, the MRX-3W crossover is required. Set incl. screwing accessories and speaker ring with grille. Manufacturing and development Made in Germany.

Product features

80 mm (3") multilayer paper-fiberglass fabric cone with special coating, powder-coated & stiffened metal basket with ventilation holes. High quality 2.8 / 4.8 mm connector plug terminals. CNC over-turned T-joke with large core bore for best possible ventilation without flow noise. Soft cover dome for tonal neutrality. 4 ohms impedance, rated / music power handling: 20 / 30 W. Outer diameter 95 mm, cut-out diameter 74 mm, installation depth 38.9 mm. Incl. speaker cover grille with rings and mounting accessories. Manufacture and development Made in Germany.

POW 80
midrange
80 mm (3")
Impedance
4 Ω
Nominal power (RMS
20 W
Music power
30 W
Sound pressure level
86 dB
Outer diameter
95 mm
Installation depth
38.9 mm

Technology

Technical data

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
4.2
g
DC resistance
Re
3.1
Ω
Effective piston area
SD
34
cm2
Voice coil inductance
Le
0.13
mH
Resonance frequency TSP
fr
119
Hz
Force factor
BLxl
3.5
Tm
Suspension compliance
CMS
0.42
mm/N
Mechanical Q
QMS
4.04
Xmax mechanical
+/-
4.8
mm
Electrical Q
QES
0.81
Equivalent air vol. of suspension
VAS
0.7
dm3
Total Q
QTS
0.67
Characteristic SPL 1W / 1 m
86
dB
Mechanical resistance
RMS
0.78
kg/s
Rated power
20/30
W
magnet material
Ferrit
voice coil diameter
25
mm
Overall diameter
95
mm
Cutout diameter
74
mm
Frame depth
3
mm
Installation depth
38.9
mm
Screw hole diameter
3.2
mm
Terminal
2.8/4.8
mm
Weight
0.42
kg
