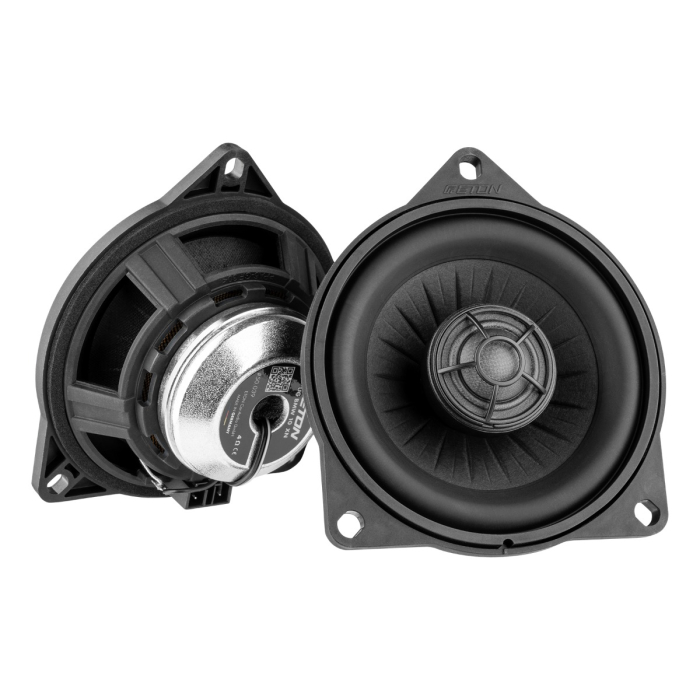

UGBMW 10 X N

Plug & Play BMW Coaxial System

100 mm (4") coaxial loudspeaker with integrated 19 mm (3/4") fabric tweeter. Ribbed, impregnated paper diaphragm with strong neodymium magnet in newly developed glass-fiber reinforced polyamide N-basket for normal installation with special sealing flange. Screwing from the front against the door panel / inner door panel. Flat installation depth due to neodymium magnet. Sealing in the direction of the door trim/inner door panel. Specially adapted for use in the front as well as the rear of the vehicle. Incl. tweeter condenser, manufacture and development Made in Germany.

Other products from this series

ETU-BMW10XN

€239.00

In stock

Pay in installments with Klarna. Learn more

Free shipping & returns

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product features

Plug and Play 100 mm (4") coaxial speaker with integrated 19 mm (3/4") fabric tweeter. Fiberglass reinforced polyamide basket in N-basket (normal installation). Screwing from the front against the door panel. Precisely fitting connection terminals, large sealing flange (sealing towards door trim/inner door panel). Ribbed, impregnated paper membrane for smooth and natural sound reproduction. The extremely strong ferrite magnet provides dynamic and powerful music reproduction in combination with the silky, soft sounding fabric tweeter a true sound upgrade for sound gourmets! Incl. tweeter capacitor.

UG BMW 10 X N

Tweeter

19 mm (3/4")

midrange

100 mm (4")

Impedance

4 Ω

Nominal power (RMS

25 W

Music power

50 W

Sound pressure level
