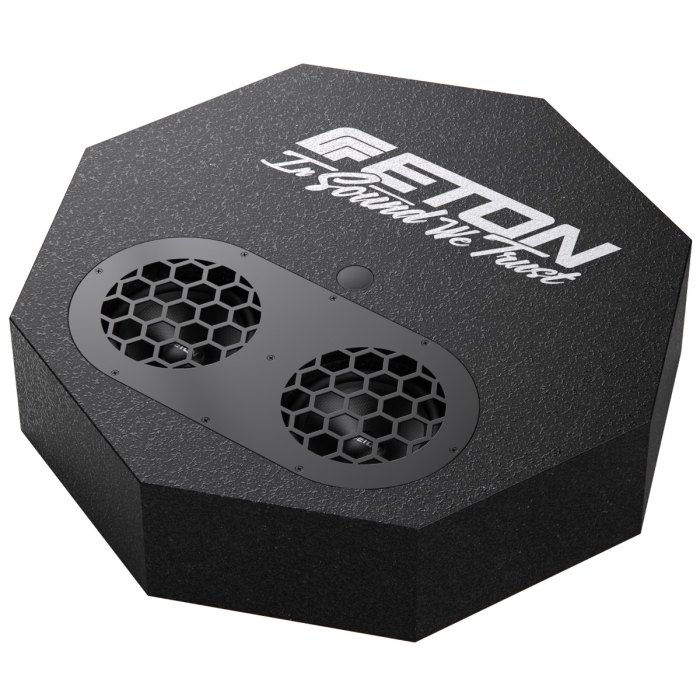

RES5 FLAT

Dual 130 mm (5") low profile active subwoofer for the spare wheel well

RES goes flat! Just 126 mm total height let this subwoofer become a problem solver! With flat spare wheel wells it is usually difficult to find a suitable subwoofer, now there is the solution. Already in the 2nd evolution stage with newly developed RES 5W aluminum die-cast baskets provided subwoofer with paper diaphragm and strong ferrite magnet. Both 130 mm (5") subwoofers result in a total diaphragm area similar to that of a 10" (250 mm) subwoofer, only increased thanks to the beiten drivers the magnetic performance. Therefore, the RES 5 Flat is in no way inferior to its larger brothers in terms of performance! A whopping 300 W RMS into 2 ohms is delivered by the AM300-2 module, adjustable gain, low-pass filter, high- and low-level input and 85 dB efficiency. Incl. installation accessories and level remote control with phaseshift 0°/180°. Engineered in Germany.

Product features

Solid MDF wooden cabinet with powder-coated and extremely strong metal cover grille, bass-reflex construction with the newly developed AM300-2 module with 2 Ohm impedance with a fabulous 300 W RMS and 600 W music power handling. Those who need it flat and yet do not want to lose anything in terms of performance, reach for the RES 5 Flat. The two 130 mm (5") long-throw subwoofers with aluminum die-cast basket and scooped paper cone produce lightning dynamic punches and thanks to the bass-reflex tuning also low end without end and that with 126 mm installation height. Impedance 2 ohms, low-pass filter 40-100 Hz, characteristic sound pressure 85 dB, diameter 550 mm, installation height 126 mm. Incl. mounting hardware and installation accessories.

RES 5 Flat
Subwoofer
2x130mm (5")
Impedance
2 Ω
Nominal power (RMS
300 W
Music power
600 W
Sound pressure level
85 dB
Outer diameter
550 mm
Installation depth
126 mm
