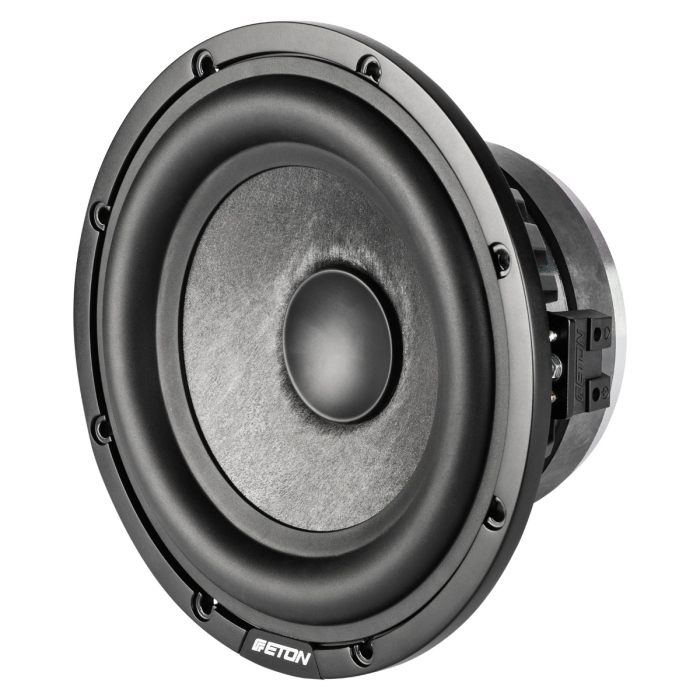

GRAPHIT8-4

High End 200 mm (8") Single chassis Subwoofer

Legends cannot be invented, they are born. Our best systems and subwoofer series combine our know-how from over 35 years of loudspeaker construction with the best materials. Designed and manufactured in Germany. This is pure quality that you can see and above all hear! Thus, the new GRAPHIT series embodies all our quality awareness, our demand for sound and performance. This series impresses with its design and performance: 2 x 4 Ohm dual voice coil, extremely termic loadable. Extremely strong ferrite magnet with high quality manufactured iron parts with ventilation holes and large molded core hole for optimal ventilation and avoid compression effects. New carbon fleece sandwich cone, highly torsion resistant. Newly developed connection terminals and new aluminum die-cast basket. A subwoofer in a class of its own for extremely fast, dynamic punches, hard-hitting attacks and deeply impressive bass passages! Manufacturing and development Made in Germany.

Product features

200 mm (8") high-quality dual voice coil subwoofer with heavy-duty 50 mm dual voice coil with 2 x 4 ohms impedance, 400 W (RMS) rated power handling, 800 W max. music power handling, long excursion surround with specially developed aluminum die-cast basket and new carbon / fiberglass fleece sandwich diaphragm for extremely impulsive music reproduction. Extremely strong ferrite magnet with specially developed ventilation, newly developed connection terminals. 84 dB characteristic sound pressure, 216 mm outer diameter, 186 mm cut-out diameter, installation depth 98.6 mm.

GRAPHIT 8-4
Subwoofer
200 mm (8")
Impedance
2x4 Ω
Nominal power (RMS
2x200 W
Music power
2x400 W
Sound pressure level
84 dB
Outer diameter
216 mm
Installation depth
98,6 mm
