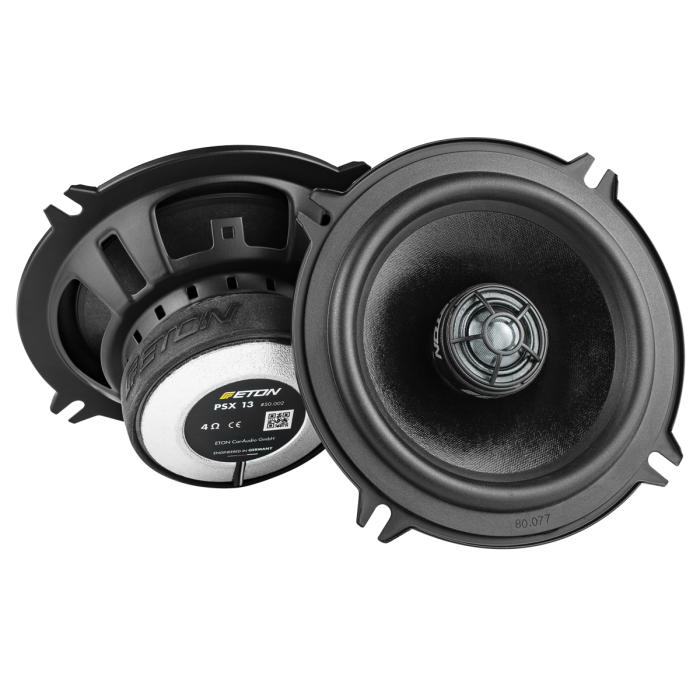

PSX13
130 mm (5") coaxial system
PSX 13 - 130 mm (5.25") coaxial system with integrated 19 mm (0.75") coated fabric tweeter with redesigned reinforced plastic touch guard for maximum transmittance. Coated paper diaphragm with strong ferrite magnet and new bottom plate design with milled cable slot. Powder coated metal basket with ventilation and high quality connection terminals. Tweeter includes integrated tweeter crossover, 4 ohm impedance, rated/music power handling 60 W RMS/100 W, 91 dB (1W/m) efficiency.
Product features
Coaxial speakers impress thanks to their design, they are true problem solvers when it comes to installation space. Thanks to the integrated tweeters, a uniform sound source is generated, this design scores in terms of precision and spatiality. The new PSX coaxial speakers are particularly impressive in terms of price performance, high-quality materials: coated paper diaphragm, a strong ferrite magnet with the newly designed base plate speak for themselves. Integrated 19 mm fabric tweeters with a special coating and redesigned metal baskets with a special slotted hole. Engineered in Germany.
Technology
LOW/MID-RANGE DRIVER - 165 mm outer diameter, 8 screw points, arranged in a circle. Recommended frequency range: 50 Hz - 3000 Hz.
OPTIMISED-VENTILATION - The basket design has been specially developed to ensure better heat dissipation to the environment, in addition the basket design minimises / prevents the generation of noise.

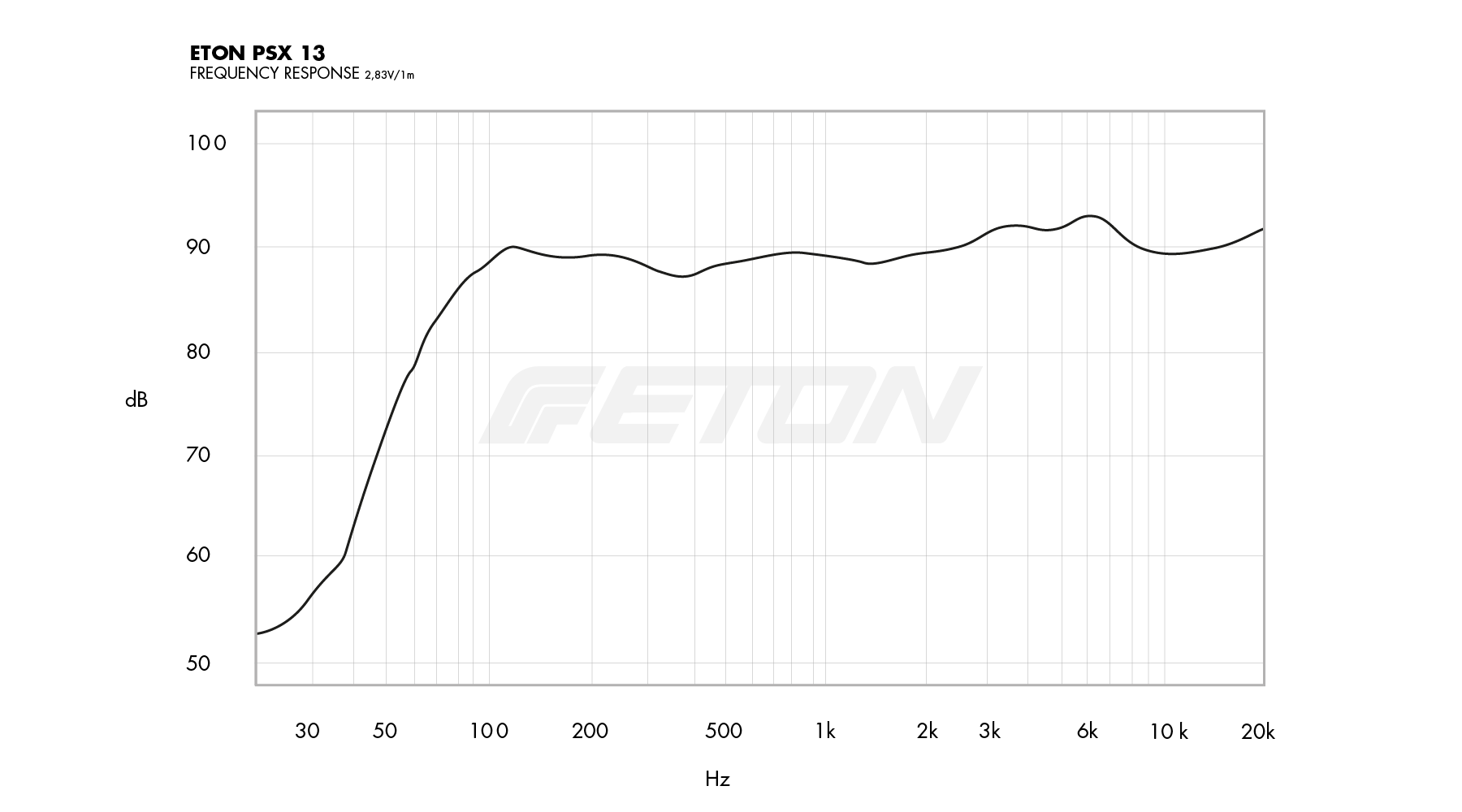

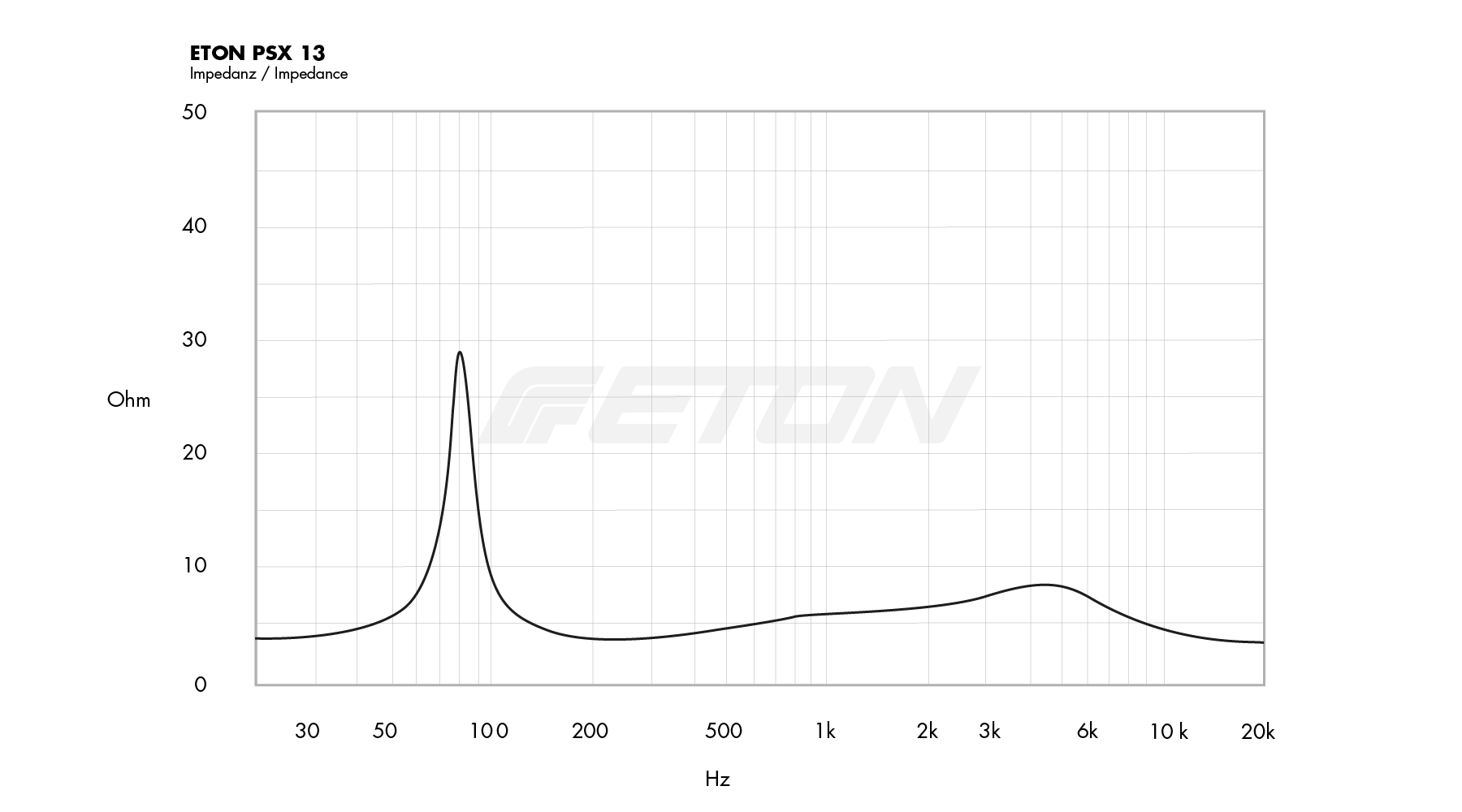

Technical data
