CSR16

2-way 165 mm (6.5") component system

The newly developed CSR 16 combines the advantages of the RSR and RSE series: The flat, revised aluminum die-cast basket gives the system a unique stability, coupled with a strong ferrite drive and optimized ventilation results in a system in a class of its own! The new CSR 16 2-way component system combines fun with sound quality, for all who like it powerful, dynamic and yet fine resolution, and with a maximum installation depth of just 60 mm - IN SOUND WE TRUST! Manufacturing and development Made in Germany.



To expand the CSR 16 to a 3-way system, the RSR 80 midrange driver is required, in passive mode the MRX-3W crossover set.



ET-CSR16
€399.00
Out of stock
Pay in installments with Klarna. Learn more
Free shipping & returns

Product features

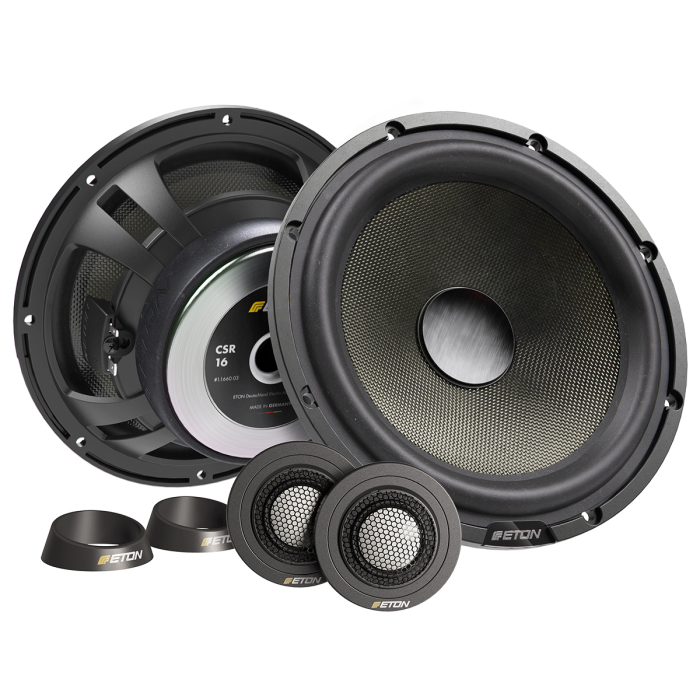

165 mm (6.5") 2-way component system consisting of a carbon Rohacell fiberglass cone bass-midrange driver with strong ferrite magnet with large core bore for optimum cooling. Special, newly developed connection terminals, aluminum die-cast basket in a flat design. The inverted aluminum dustcap harmonizes perfectly with the sandwich diaphragm and creates an extremely dynamic and balanced sound. Extremely powerful punches are possible thanks to the large, resilient voice coil. The 25 mm (1") aluminum-ceramic tweeters play extremely silky and detailed, in combination with the woofer / midrange a real sound machine! 4 Ohm impedance, 70 W RMS rated power handling and 120 W music power handling. 89 dB characteristic sound pressure.

CSR 16
Tweeter
25 mm (1")
Bass / midrange
165 mm (6.5")
Impedance
4 Ω
Nominal power (RMS
70 W
Music power
120 W
Sound pressure level
89 dB
Outer diameter
165 mm
Installation depth
60 mm

Technology

Technical data

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
14.3
g
DC resistance
Re
3.4
Ω
Effective piston area
SD
137
cm2
Voice coil inductance
Le
0.35
mH
Resonance frequency TSP
fr
70
Hz
Force factor
BLxl
5.4
Tm
Suspension compliance
CMS
0.37
mm/N
Mechanical Q
QMS
6.21
Xmax mechanical
+/-
9.2
mm
Electrical Q
QES
0.67
Equivalent air vol. of suspension
VAS
9.6
dm3
Total Q
QTS
0.61
Characteristic SPL 1W / 1 m
89
dB
Mechanical resistance
RMS
1.09
kg/s
Rated power
70/120
W
magnet material
Ferrit
voice coil diameter
32
mm
Overall diameter
165
mm,
Cutout diameter
146
mm
Frame depth
6.5
mm
Installation depth
60
mm
Screw hole diameter
4.5
mm
Terminal
2.8/4.8
mm
Weight
1.15
kg
